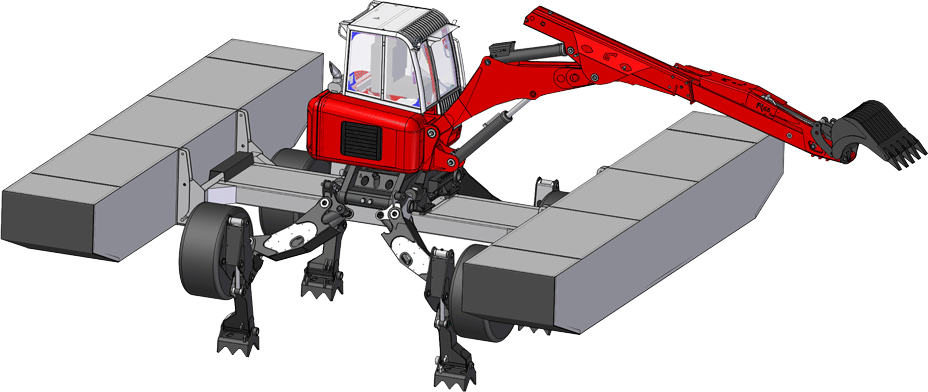

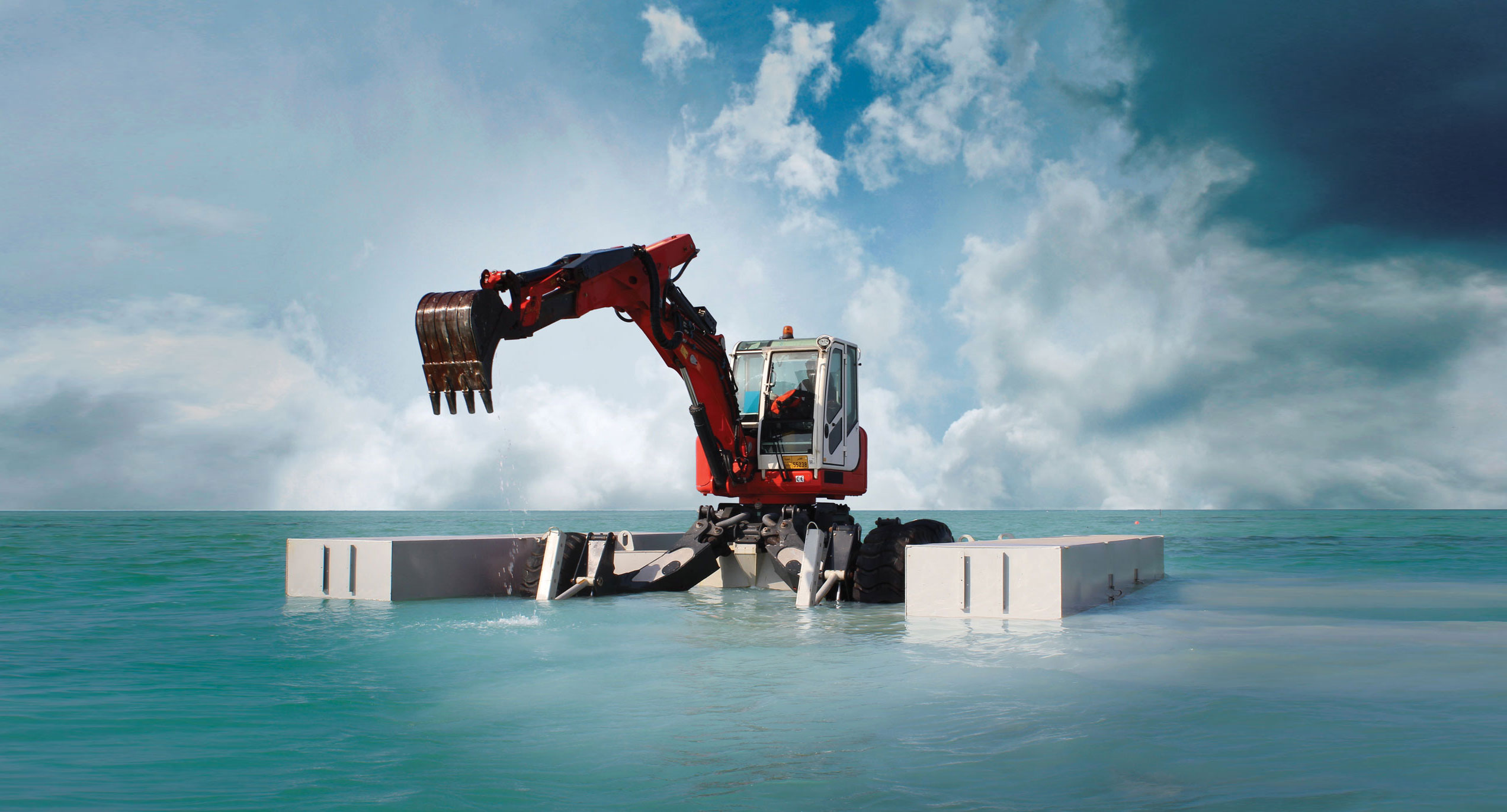

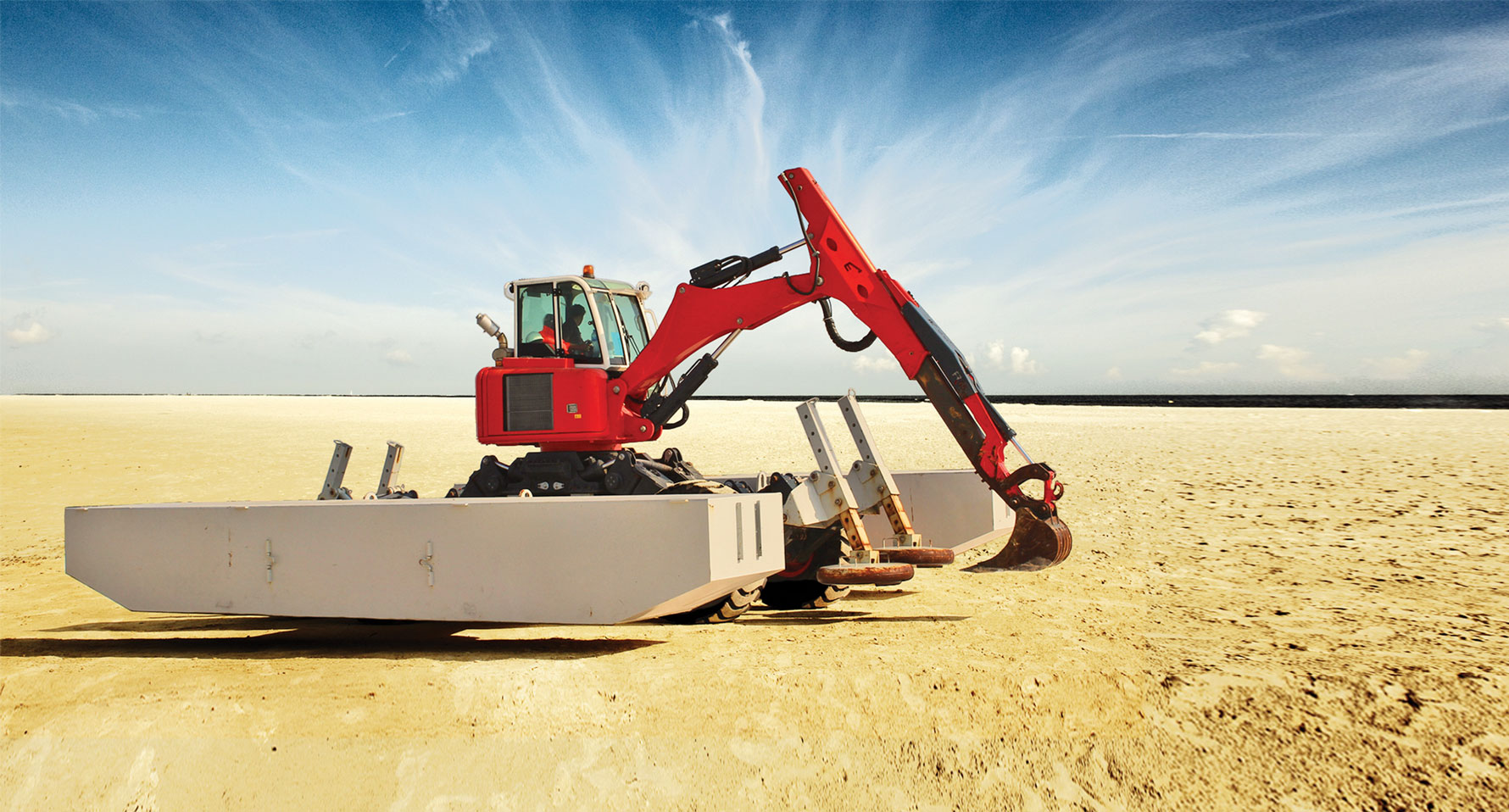

Thainex Aqua Spider™

AMPHIBIOUS SPIDER EXCAVATOR

FEATURES

Self-motoring advanced technology.



4-legged underwater stabilizers up to 4.8 meters water depth.



UP TO 7.7M digging depth.



Up to 140HP, Bosch Rexroth Load-sensing Hydraulics and 4 wheel drive.



Quick and independent assembly (no crane needed).



Easy transportation on standard truck.



Completely independent positioning in and out of water (no crane needed).



Patented floating equipment manufactured under iso 9001 standards.

Thainex AquA sPIDER™

STANDARD EDITION

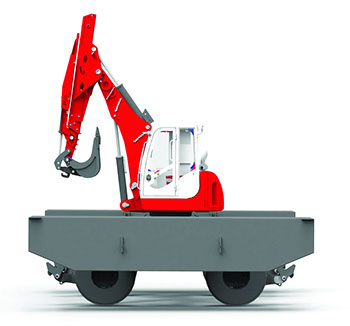

This STANDARD EDITION amphibious excavator is based on a modified Euromach F65 Big Foot (Forester II).



It is is paired up with a pontoon set of 6m or 8m, depending on the work environment.



Up to 4.5 meters water depth.

Thainex Aqua Spider, amphibious excavator, swimming, floating, pontooned, spider excavator
Thainex Aqua Spider, amphibious excavator, swimming, floating, pontooned, spider excavator

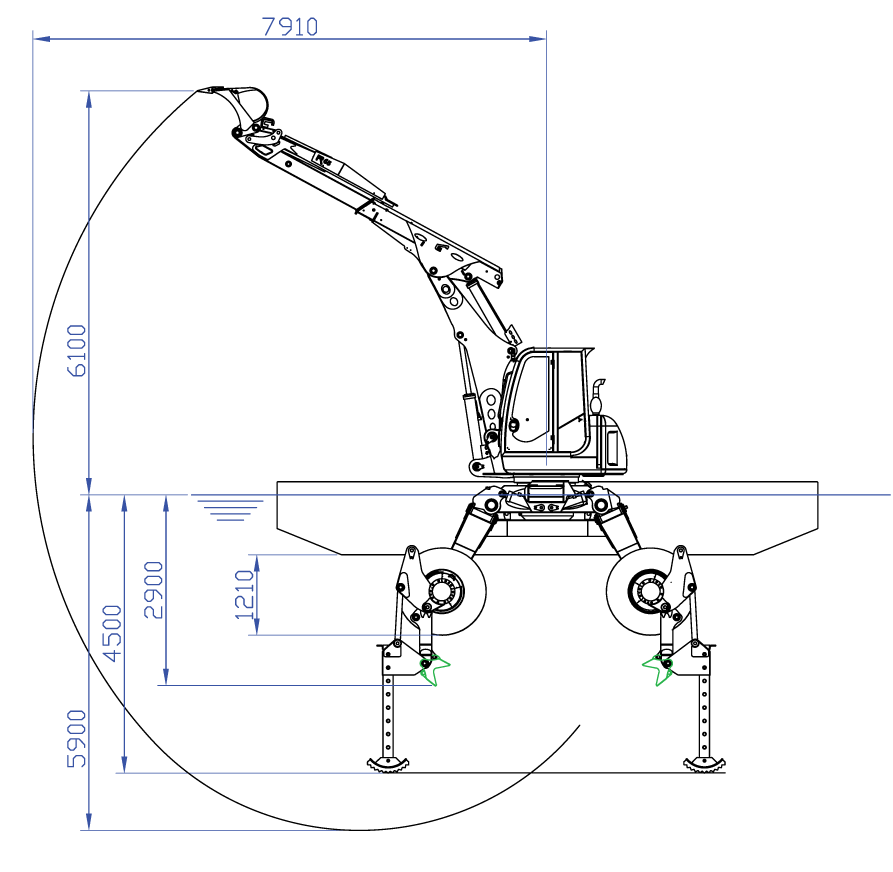

Dimensions

Max. Excavation Depth

5900mm

Max. Water Depth incl. Aqua Legs (option)

4500mm

Water Depth Forester II only

2500mm

Max. Traction Speed

6km/h

Working Pressure

280 bar

Max. Displacement

160L/min

Main Tank Fuel Capacity

75L

Reserve Tank Fuel Capacity

160L

Standard TAS

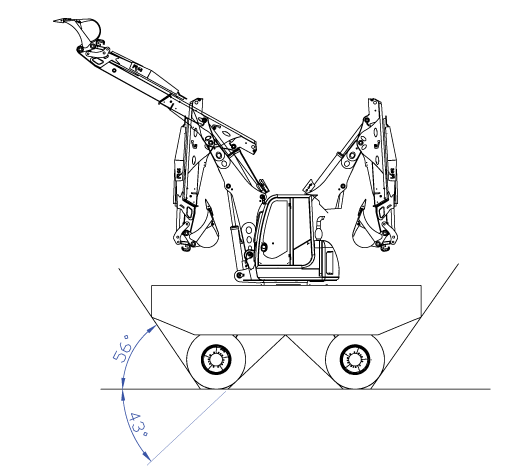

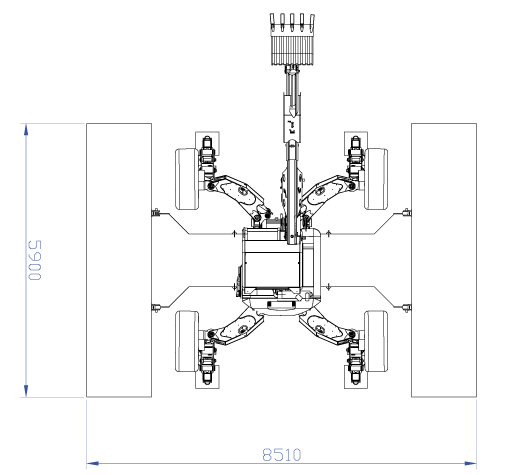

Standard Aqua Spider™ with 6m Pontoons
Suitable for use with accessories under 400kg (standard range of buckets).

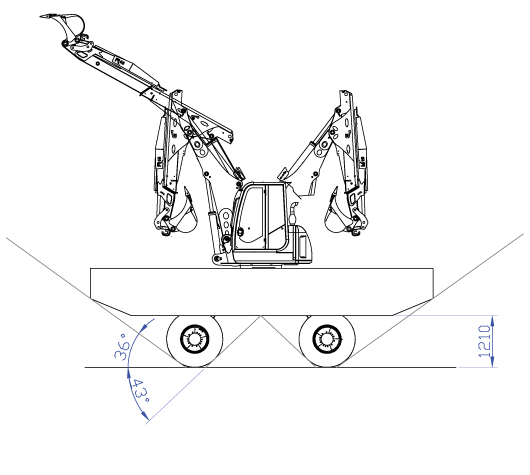

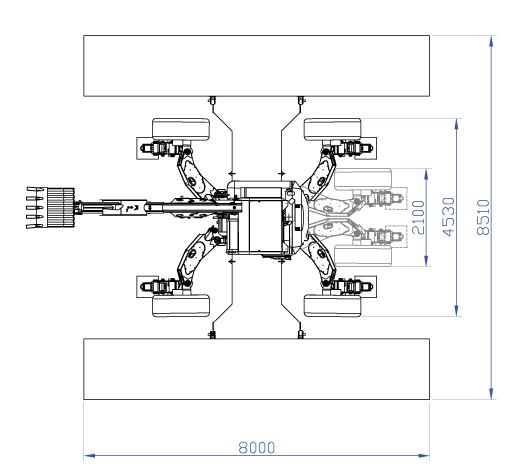

Standard Aqua Spider™ Amphibious Excavator with 8m Pontoons
Suitable for heavy construction work or with heavier accessories (hydraulic breakers, mulchers, grabs...)

Thainex AquA sPIDER™

Mark II

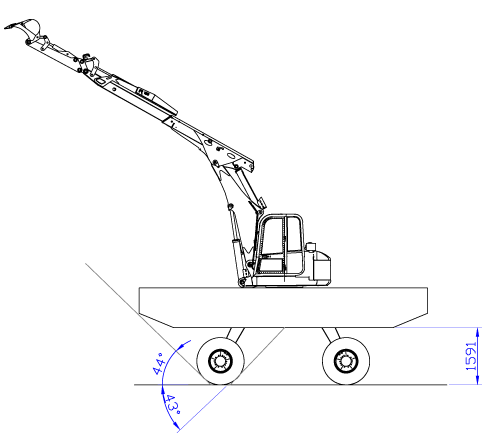

This heavy duty MARK II amphibious excavator is based on a modified Euromach R105 Big Foot (Forester II).



It is always paired up with the 8m pontoon set.



Up to 4.8 meters water depth.

Thainex Aqua Spider, amphibious excavator, swimming, floating, pontooned, spider excavator

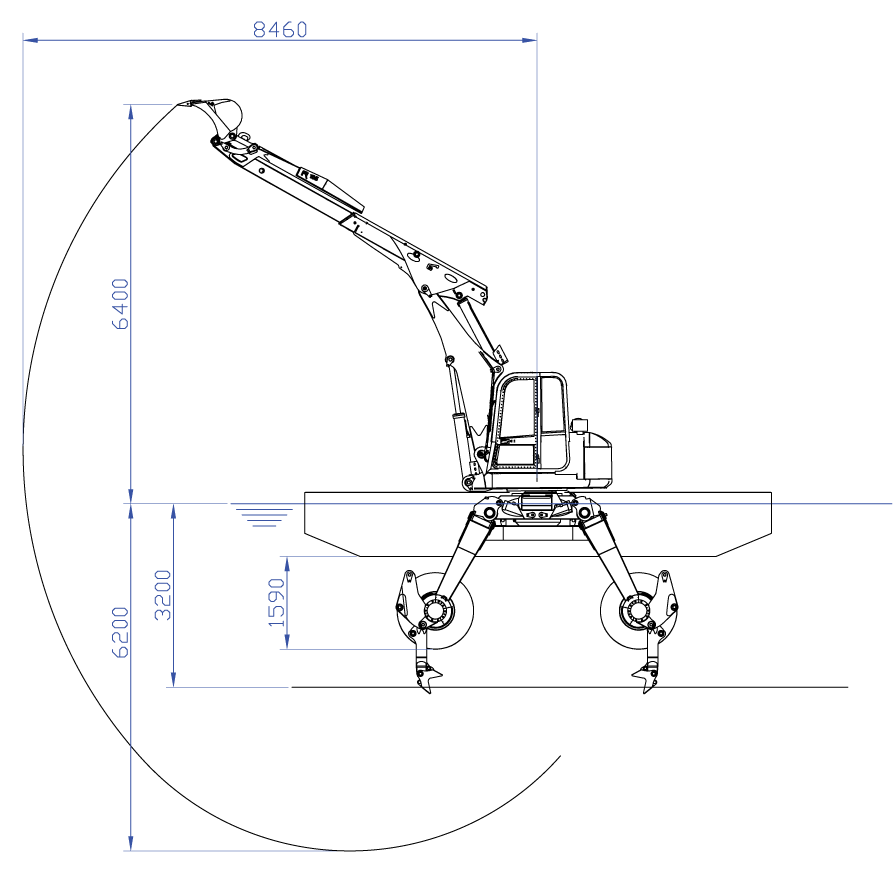

Dimensions

Max. Excavation Depth

6200mm





Max. Water Depth

3200mm

Max. Traction Speed

8km/h

Working Pressure

300 bar

Max. Displacement

330L/min

Main Tank Fuel Capacity

140L

Reserve Tank Fuel Capacity

160L

Mark II

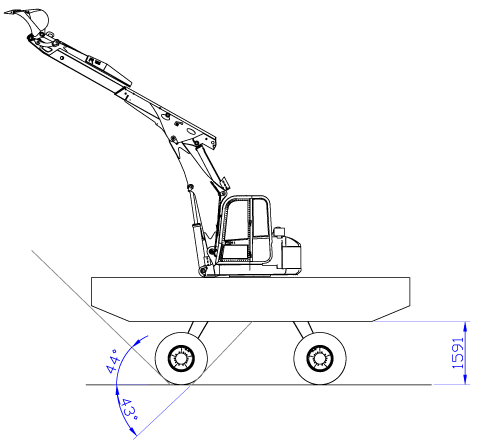

Mark II Amphibious Excavator with 8m Pontoons
Suitable for heavy construction work or with heavy accessories (hydraulic breakers, mulchers, grabs...)

Thainex AquA sPIDER™

Mark IIi

This heavy duty MARK II amphibious excavator is based on a modified Euromach R105 Big Foot (Forester II).



It is always paired up with the 8m pontoon set.



This model has a notable boom extension increasing its max.  excavation depth to 7.7 meters.



When paired with Aqua Legs stabilizers, this amphibious excavator can work in water of up to 4.8m depth.

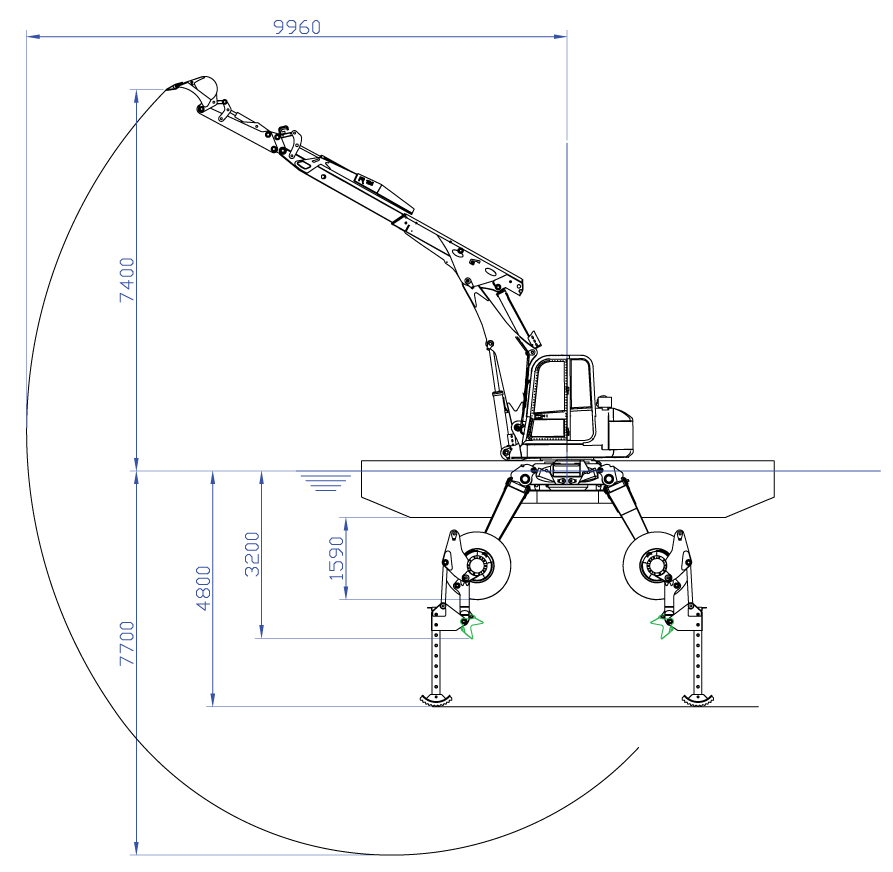

Dimensions

Max. Excavation Depth

7700mm

Max. Water Depth incl. Aqua Legs (option)

4800mm

Max. Water Depth Forester II only

3200mm

Max. Traction Speed

8km/h

Working Pressure

300 bar

Max. Displacement

330L/min

Main Tank Fuel Capacity

140L

Reserve Tank Fuel Capacity

160L

Mark III

Mark III Amphibious Excavator with 8m Pontoons
Suitable for heavy construction work with extended boom reaching up to 7.70m.

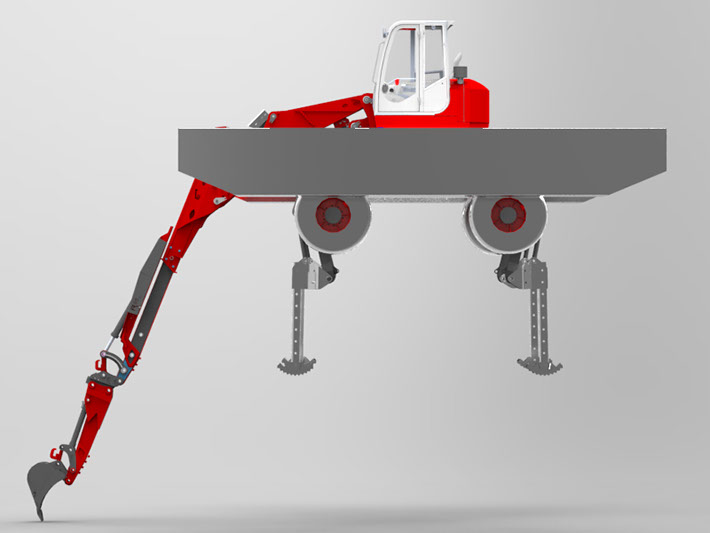

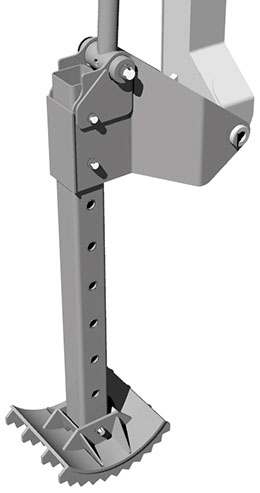

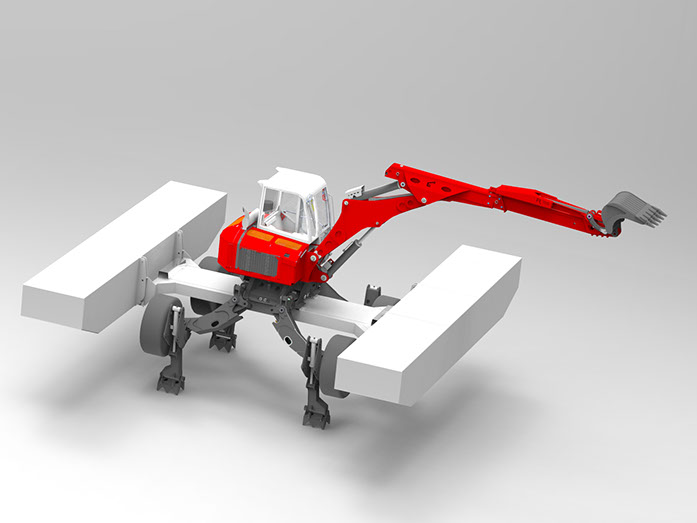

Aqua legs™

stabilizing leg extensions

For work in deeper waters, the Thainex Aqua Spider™  amphibious excavator can be fitted with Aqua Legs™. These hydraulically adjustable support legs extend the underwater reach of the machine  making the total max. water depth up to 4.8m depending on ground conditions. The length of the legs is manually adjustable.



Any Thainex Aqua Spider amphibious excavator can be fitted with Aqua Legs™ provided that the machine uses 8m pontoons.



Each leg weighs approx. 244kg.



Aqua Legs™ exist in 2 versions:





Aqua Legs™

standard

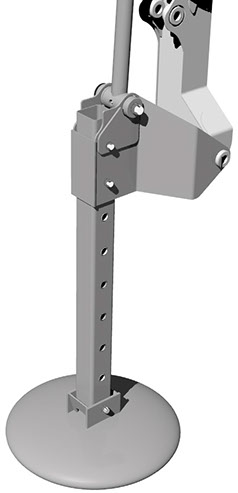

Aqua Legs™

mud plates

Thainex Aqua Spider, amphibious excavator, swimming, floating, pontooned, spider excavator, Aqua Legs, underwater support
Thainex Aqua Spider, amphibious excavator, swimming, floating, pontooned, spider excavator, Aqua Legs, underwater support mud

Suitable for normal river-/seabeds, sandy and/or rocky ground, providing max. grip and stability.

Suitable for muddy river-/seabeds, keeping the legs from sinking into the ground.
